The simplest gate there is, and the one most often built wrong. Leaf length, bracing and hinge post sizing decide whether it still latches in year five.
Swing Gates in St. Paul, MN
St. Paul Elite Metal Gates is your local resource for swing gates, driveway gates, automatic gate operators and ornamental iron fencing throughout St. Paul and Ramsey, Hennepin, Washington, Dakota and Anoka Counties. We work with experienced gate fabricators and installers who build for a climate that swings 120 degrees between July and January.
A swing gate is the first choice whenever the driveway allows it. Fewer moving parts than a slide gate, no ground track to fill with ice, quieter, and cheaper to build and to automate. What it needs is an arc — a clear path through its full travel with nothing parked, planted or piled in it, and grade that does not rise into the swing.
The failures are equally predictable, and there are only two of them. Either the hinge post moves, which is a footing problem, or the leaf drops at its free end, which is a bracing problem. A gate that scrapes the driveway isn't settling in — the post is. A gate whose latch no longer meets the keeper but whose post is still plumb has deflected, and that is what a latch-side diagonal brace exists to prevent. Both are decided before anything is welded.
What’s Included in a St. Paul Swing Gates Quote
- Clear-opening measurement plus grade change across the arc, taken with a level rather than eyeballed
- Arc walked through full travel against parked vehicles, garage doors, curb return and where snow gets piled
- Single versus double determination — past roughly 12 feet a double pair is usually the better structure
- Frame specification with latch-side diagonal bracing on any leaf long enough to deflect
- Hinge post sized to finished leaf weight, with hinge count and type matched to it
- Footings below the 42-inch Zone II frost depth, sonotube and concrete collar, posts plumbed and braced
- Latch, keeper, drop rod or cane bolt and positive stops located after the gate has settled on its hinges
- Operator provisions and, where automated, the UL 325 entrapment protection an arc and hinge pinch point require
Swing Gate Installation in St. Paul, MN

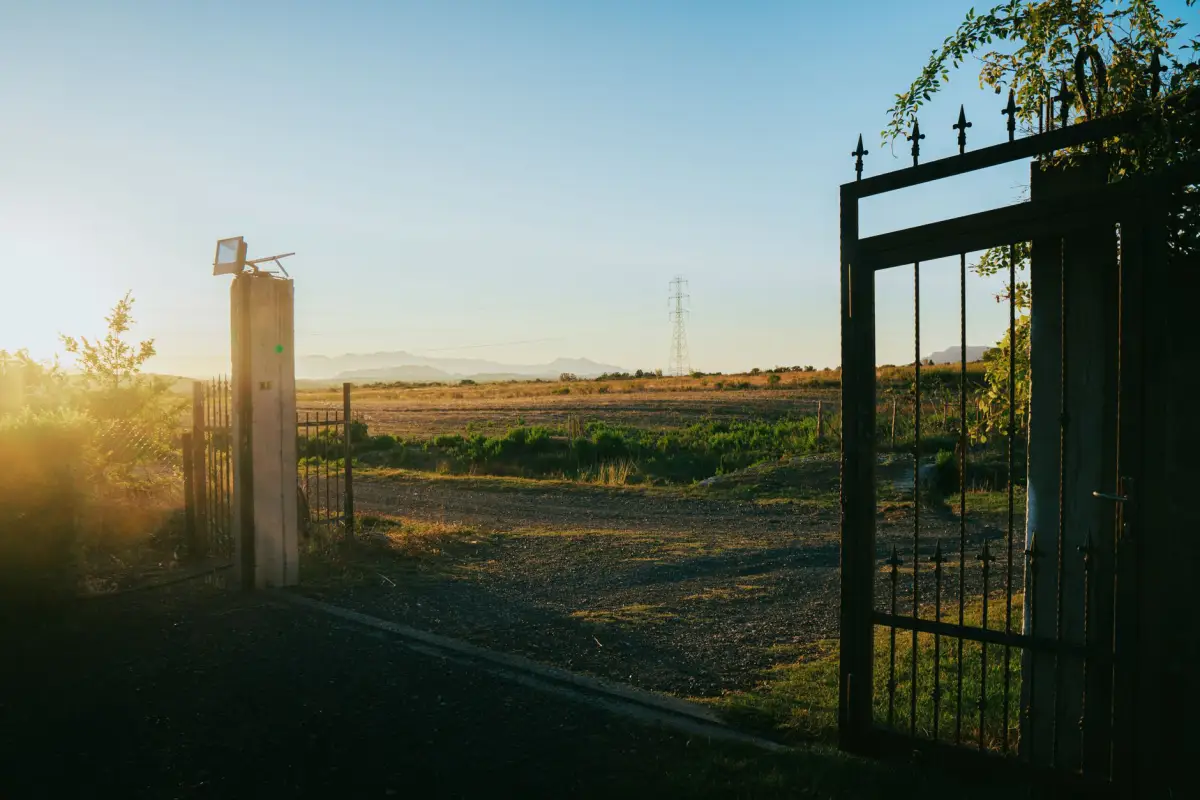

Single Swing Gates
One leaf, one hinge post, one thing to maintain — and every pound of the gate hanging off that single post. Single leaves are the right answer up to roughly 12 feet, and past that deflection starts to win. The physics is unforgiving: doubling the leaf length more than doubles the droop at the free end, which is why the classic sagging gate is always a long single leaf that was built without a latch-side diagonal brace. The symptoms arrive in order. First the latch needs a lift to meet the keeper. Then it needs a lift and a shove. Then the bottom rail starts drawing an arc into the asphalt, and by that point the hinge post is being levered as well. The fix at the design stage is a brace running from the top of the hinge stile down to the bottom of the latch stile, which turns the frame into a triangle instead of a parallelogram.

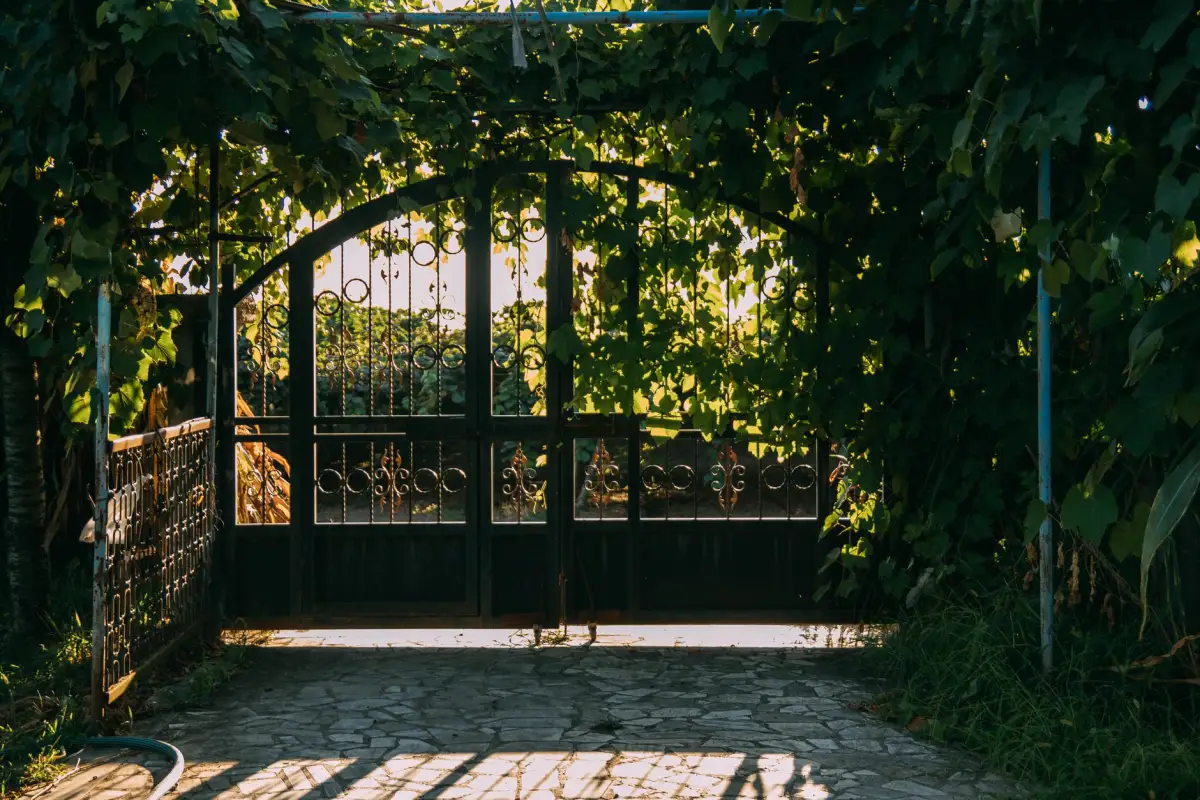

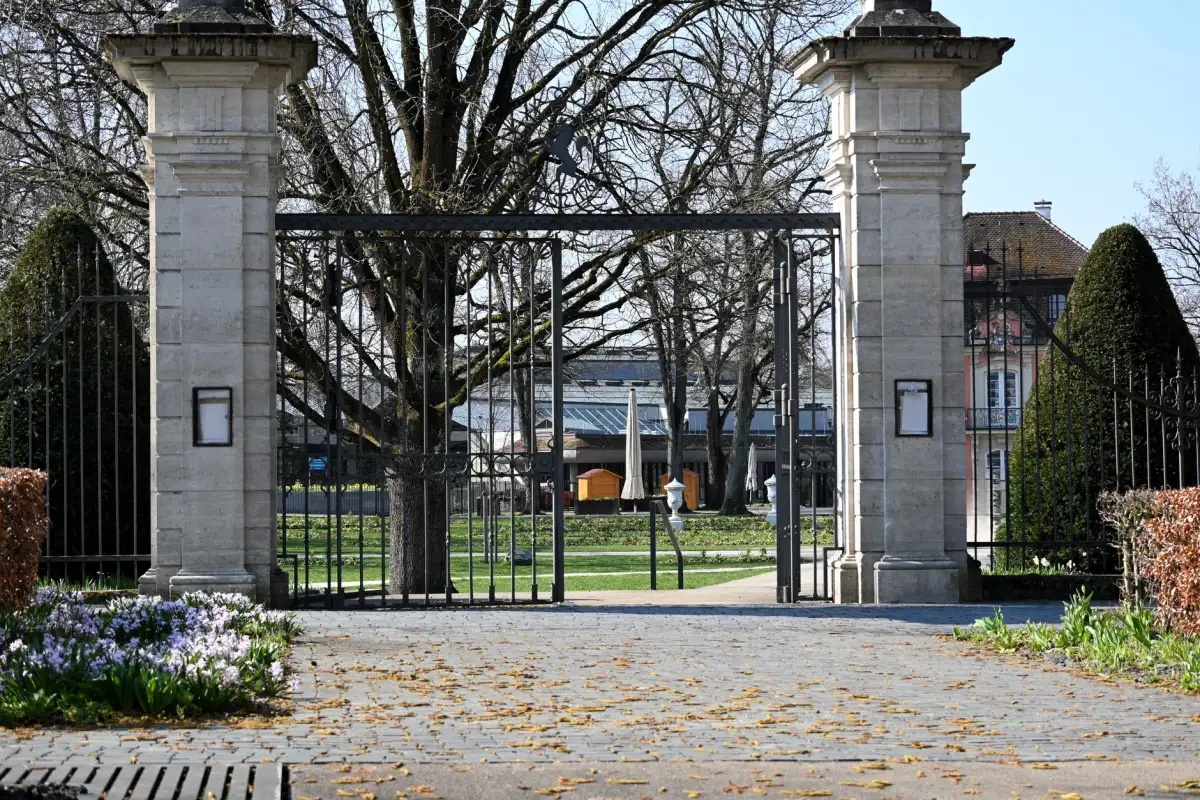

Double Swing Gates
Splitting a wide opening into two leaves halves the leaf length, which cuts deflection dramatically, and halves the load carried by each hinge post. It also shortens the arc each leaf sweeps, which matters on a short drive where a single 14-foot leaf would reach the sidewalk. The centre is where the design work goes: the two leaves need a positive meeting detail, usually an overlapping astragal or a rabbeted stile, plus a drop rod or cane bolt into a sleeve in the drive to hold the primary leaf against wind and against being pushed. That sleeve is the part that fills with slush every March and needs a drain or a plug. On an automated double gate, the leaves have to be sequenced so the leaf carrying the drop rod closes last, which means two operators and a control board that knows the order.
Automatic Swing Gates
Adding an operator raises the standard the gate has to meet. A leaf that binds slightly at one point in its arc is a nuisance to a person and a slow death sentence for a motor, which keeps pushing because it cannot feel what your shoulder feels. Before an operator is specified, the gate is swung by hand through its complete travel to find rubs and dead spots, and the hinge post and footing are checked for movement. Then the mounting geometry decides the operator family — an articulated arm where the gate hangs off a wide masonry pier and the pivot sits well inboard, a linear ram where the geometry is tight and quiet operation matters, an underground unit where nothing should be visible and drainage can be designed in. Safeties follow: UL 325 requires two independent entrapment-protection devices at each entrapment zone, and on a swing gate that includes the arc itself and the pinch point at the hinge.
Manual Swing Gates
A manual swing gate is often exactly right, and it is the cheapest reliable gate anyone can buy. It suits a side yard, a garden entrance, a second driveway, a boat or trailer access point, or any opening used a few times a week. It has no operator to fail, no power to run and no photo eyes to knock out of alignment. What it does need is hardware that works in the cold: a gravity latch that fills with ice and freezes shut is a nuisance every February, and a self-closing hinge that is set to close a gate at 70 degrees will struggle at ten below. Where the gate is on a fence line St. Paul requires the gate to be self-closing, self-latching and lockable, so latch selection is a code question as well as a comfort one. And if daily use is even plausible, sleeve a conduit under the drive now.

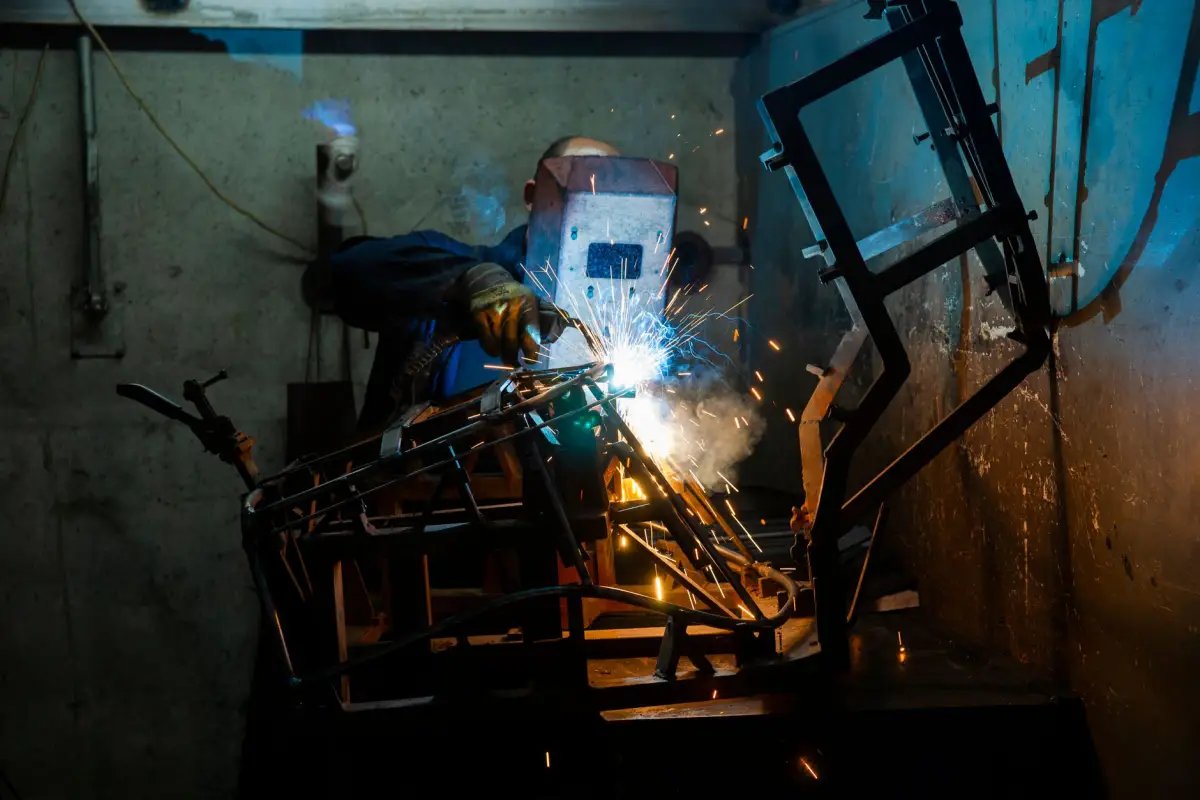

Custom Metal Driveway Swing Gates
Most swing gates in this city are custom for the same reason most openings are not round numbers. A measured opening of 13 feet 4 inches gets a gate built to 13 feet 4 inches, and a masonry pier that is out of plumb by an inch and a half over its height — which is normal on an older Summit Avenue or Crocus Hill property — gets accounted for in the hinge stile rather than fought with shims. Custom also covers the things that make a gate match a house: arched or peaked top rail, spear or fleur finials, scroll infill, picket spacing that matches the existing fence run. And it covers the things that make it survive: bracing sized to the leaf, hinge count matched to the weight, and ornament kept above the bottom third of the gate where the plow spray and the road salt live.
Signs You Need Swing Gates
- The latch needs a lift or a shove to meet the keeper, which means the leaf has dropped at its free end
- The bottom rail has drawn a visible arc into the driveway surface
- The gate closed square when it was new and now shows a wedge-shaped gap at the top or bottom
- The hinge post is visibly out of plumb or has lifted relative to the fence beside it
- You have a wide opening and a single leaf that flexes noticeably when you push it
- The drive has a clear arc and no back-run, which rules out a slide gate and points at a swing
How Swing Gates Works
- 1
Walk the arc and take the grade
A swing gate lives or dies on two site facts. The first is the arc: the full travel path gets walked with the obstructions that exist all year and the ones that only exist in winter — a parked car, a garbage cart on collection day, the pile the snowblower makes beside the drive. Swinging outward toward the street has its own limit, since a leaf that reaches the public sidewalk is a liability question rather than a preference. The second is grade, taken with a level across the opening and through the arc. A drive that rises toward the house will stop an inward-swinging gate partway through its travel; a drive that falls across the opening will drag the free end of the leaf unless the bottom rail is cut on a rake or the whole gate is hung higher. Neither number can be taken from a photograph, and both change the gate.
- 2
Decide single or double, then brace for the length
Leaf length is the governing number. Under about 12 feet a single leaf is simplest and cheapest; past that, a double pair is usually the better structure even though it doubles the hardware, because deflection grows faster than length and because the arc each leaf sweeps gets shorter. Once leaf length is set, bracing follows: any leaf long enough to deflect gets a diagonal running from high on the hinge stile to low on the latch stile, which is what turns the frame from a parallelogram that can rack into a triangle that cannot. Infill is the other input, since a solid privacy panel is a sail and a picket gate is not — on an exposed lot in Shoreview or on a west-facing drive, a solid leaf materially increases the post size and, if it is automated, the operator class.
- 3
Size the hinge post and set the footing
The hinge post carries the whole leaf as a cantilever, and it is sized to the finished weight rather than to whatever post the fence uses. Hinge count and type follow from the same number; two hinges on a heavy leaf concentrate load in a way three or four do not. Then the footing, which is where most swing gate failures actually originate. Minnesota Rules 1303.1600 puts Ramsey, Hennepin, Washington, Dakota and Anoka Counties in Zone II at a 42-inch minimum depth for frost protection, and a hinge post stopped short of that will heave. Sonotube, concrete collar, post set plumb and braced while the concrete cures. It gets re-checked after the first freeze-thaw season, because a footing that was marginal will say so by then and a shim at that point is far cheaper than a re-dig two years later.
- 4
Hang, set the hardware, then automate
The gate is hung and swung through its complete arc before any latch hardware is located, because a leaf settles onto its hinges and its resting position after hanging is not quite the position it occupied on the sawhorses. Latch, keeper, stops and, on a double gate, the drop rod sleeve all get positioned against that settled position. Stops matter more than people expect: a positive stop at the fully open position is what keeps a gust from carrying the leaf past its travel and springing the hinge. If an operator is going in, the pad and conduit were roughed in earlier; the unit is mounted true to the arc, travel limits are set at both ends, soft start and soft stop are tuned, and then the UL 325 devices go in and are tested by physically obstructing the gate — the arc and the hinge pinch point are both entrapment zones, and both need covering.
What Do Swing Gates Cost in St. Paul, MN?
- Opening width and whether it is a single leaf or a double pair
- Leaf length, which sets frame section, bracing and hinge post size
- Infill: picket, horizontal slat or a solid privacy panel that has to be engineered for wind load
- Material — steel, aluminum or forged ironwork, in ascending order per foot
- Coating specification against the gate's distance from a salted street
- Manual or automated, and on a double gate that means two operators and sequenced control
- Footing conditions at the hinge posts and whatever the ground turns up
- St. Paul DSI fence permit fees where the gate forms part of a fence line
The cheapest swing gate and the most expensive one usually differ by a diagonal brace, a larger hinge post and a foot of footing depth — items nobody can see from the street and every one of which decides whether the gate still latches in year five. When comparing quotes, compare those three lines first. The infill and the finials are the part you are choosing; the rest is the part you are buying.
What to Look for in a St. Paul Swing Gate Installer
Bracing is on the drawing
A long leaf without a latch-side diagonal will sag. If the drawing does not show one, the sag is already scheduled.
Hinge post size is justified
The post should be sized to the finished leaf weight, not matched to the fence posts because they were on the truck.
Footing depth is written down
42 inches is the Zone II minimum. A quote that omits it cannot be compared to one that states it.
They took the grade with a level
Fall across the opening decides whether the bottom rail needs a rake. Nobody can see three inches of fall by looking.
Stops are part of the hardware schedule
A positive open stop is what keeps a gust from carrying the leaf past its travel and springing a hinge. It is cheap and often left off.
They check it after the first winter
The freeze-thaw season is the real test of a footing. An installer who plans a follow-up is one who expects to stand behind the work.
Residential & Commercial Swing Gates
Residential
Single and double swing gates for homes across St. Paul, Summit Hill, Crocus Hill, Mendota Heights, Woodbury and Roseville — braced for the leaf length and hung so the arc still clears with snow beside the drive.
Commercial
Swing gates for yards, service entrances and enclosures where a slide gate is unnecessary. Commercial cycle counts move the hinge type, bracing and operator class up, and the hardware schedule with them.
When Swing Gates Isn’t the Right Call
- If there is no clear arc — a garage door, a retaining wall or a rising drive inside the swing — a swing gate will fight you every day. That is a slide gate conversation.
- If the leaf would reach the public sidewalk when open, do not build it. Reverse the swing or change the configuration.
- If the existing gate sags but the frame and posts are sound, a repair with added bracing is usually cheaper and better than a replacement.
- If you want a wood swing gate, that is a legitimate choice and a different trade.
- If the property sits outside Ramsey, Hennepin, Washington, Dakota or Anoka Counties, look for someone closer to it.
Frequently Asked Questions
- Why does my swing gate sag?
- Either the leaf has deflected or the hinge post has moved. The tell is the hinge post: if it is still plumb and the gate has dropped at the latch end, the frame is racking and it needs a latch-side diagonal brace. If the post itself has tilted or lifted, the footing is the problem — usually a hole that stopped short of the 42-inch Zone II frost depth. Adding a brace to a gate whose post has heaved fixes nothing.
- How wide can a single swing gate be?
- Practically, about 12 feet in steel with proper bracing, and further in aluminum because the leaf is lighter. Past that, deflection and the load on a single hinge post both climb faster than the width does, and a double pair becomes the better structure. Leaf weight matters as much as width — a 10-foot solid privacy leaf can be heavier and harder on a post than a 14-foot picket one.
- Which way should a driveway swing gate open?
- Inward, toward the property, in almost every case — a leaf that opens outward can reach the public sidewalk, which is a liability problem, and it is also exposed to being clipped by passing traffic. Inward swing needs grade that does not rise into the arc and a path clear of parked vehicles and snow piles. Where the drive rises toward the house, the answer is often to reverse the swing or move to a slide gate.
- What is a drop rod for on a double gate?
- It holds the primary leaf fixed so the second leaf has something to latch against, and it stops wind from working the pair apart. It drops into a sleeve set in the drive surface. In this climate that sleeve fills with slush and freezes every spring, so it wants a drain, a plug or a cap — a drop-rod hole full of ice in March is the most common reason a double gate stops closing properly.
- Do swing gates need to be self-closing in St. Paul?
- For fences within the city, gates are required to be self-closing, self-latching and lockable. That makes hinge and latch selection a code question rather than a preference. It also makes cold-weather performance relevant, since a self-closing hinge set for a mild afternoon will behave differently at ten below and a gravity latch that ices up will not latch at all.
- Can I automate a swing gate I already have?
- If it swings freely through its whole arc and the hinge post and footing are sound, usually yes. Swing the gate by hand and note anywhere it binds or takes more effort — those are the places a motor will eventually break something. A gate that already sags or drags needs that fixed before an operator goes on it, because automation accelerates the underlying problem rather than compensating for it.
Learn More
- Minnesota Rules 1303.1600 — Footing Depth for Frost Protection — the 42-inch Zone II minimum that keeps a hinge post from heaving and taking the gate's geometry with it
- Saint Paul DSI — Fence Plan Review, Permit and Inspections — the city's fence and gate requirements, including self-closing and self-latching gates and the property-line rule
- DASMA — ANSI/CAN/UL 325 and Gate Installations — how entrapment zones are identified on swing gates, including the arc and the hinge pinch point
