Sliding Gates in St. Paul, MN — Residential & Commercial Slide Gate Systems
A slide gate needs back-run, not swing room. Whether it runs on a ground track or carries itself on carriages is a winter decision as much as a budget one.
Sliding Gates in St. Paul, MN
St. Paul Elite Metal Gates is your local resource for sliding gates, driveway gates, automatic gate operators and ornamental iron fencing throughout St. Paul and Ramsey, Hennepin, Washington, Dakota and Anoka Counties. We work with experienced gate fabricators and installers who build for a climate that swings 120 degrees between July and January.
A sliding gate solves the problem a swing gate cannot: no arc. Where the drive is short, rises toward the house, or opens straight onto a busy street like West 7th, a gate that swings has nowhere to go. A slide gate travels sideways along the fence line instead, which means the constraint moves from swing radius to back-run — a clear run alongside the drive roughly as long as the opening, kept clear year round.

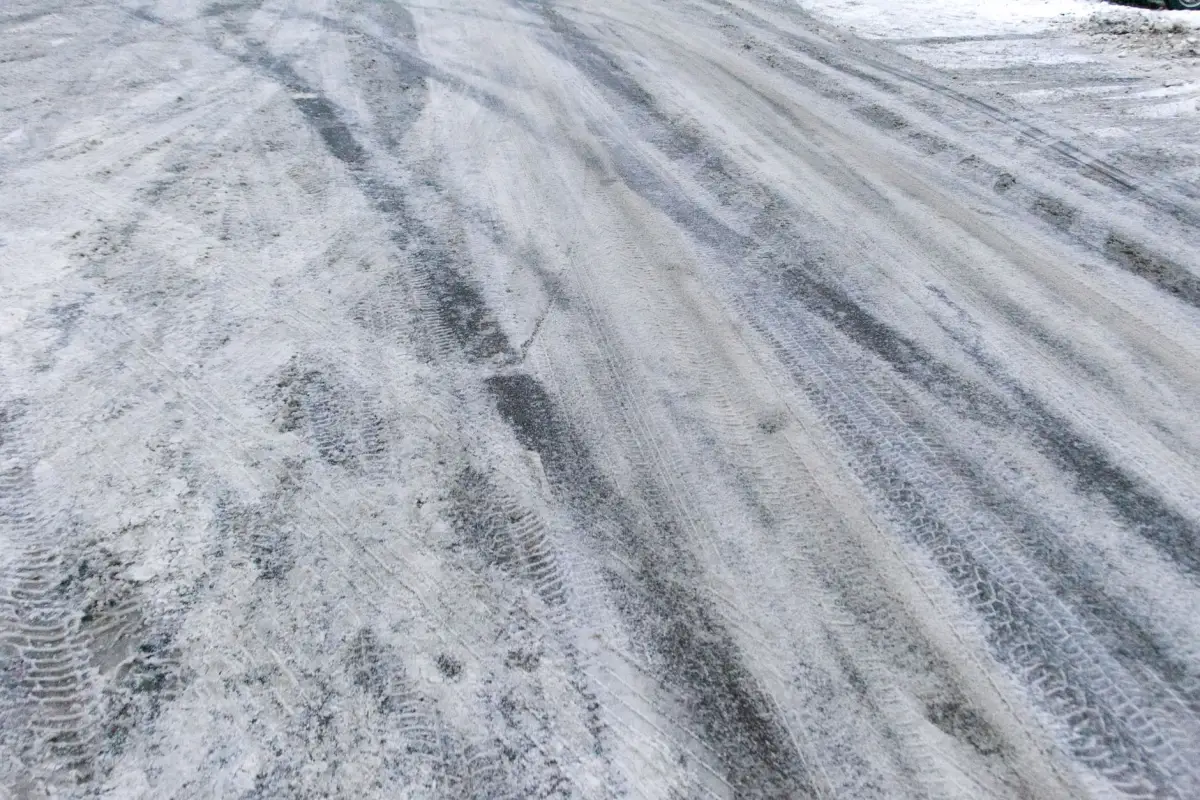

The other decision is what carries the gate. A V-track slide gate rolls on wheels in a track set into the drive apron. It is the economical version and it is also the one that quits in January, because the V fills with slush, freezes, and the gate will not roll. A cantilever gate carries the leaf on roller carriages at the posts with a counterbalance tail behind, touching nothing at ground level. It costs more and needs even more back-run, and on a north-facing Highland Park drive that never sees sun between December and March it is usually the cheaper gate over ten years.
What’s Included in a St. Paul Sliding Gates Quote
- Clear-opening measurement plus a measured back-run alongside the drive, checked against winter obstructions and plow berms
- V-track versus cantilever determination based on exposure, available run and how the apron drains
- Frame specification sized for a leaf that is unsupported along most of its travel — heavier section than an equivalent swing leaf
- Track layout set to a string line, or roller carriage post spacing and counterbalance tail length on a cantilever gate
- Roller, carriage and end-stop hardware specified for the finished leaf weight
- Footings below the 42-inch Zone II frost depth at every post, since a slide gate is far less forgiving of post movement than a swing gate
- Coating specification for a leaf whose bottom rail sits in the plow-spray zone all winter
- Operator provisions — pad, conduit and power — plus the UL 325 safety devices an automated slide gate requires
Sliding Gate Installation in St. Paul, MN
Residential Sliding Driveway Gates
On a house, a slide gate is usually the answer to a specific obstruction rather than a first preference — a garage door too close to the opening, a drive that climbs toward the house, or a street the gate would swing into. The residential version is lighter than a commercial one, but it still needs more frame than a swing gate of the same width, because for most of its travel the leaf is supported at only two points. Picket infill is the common choice, partly for looks and partly for wind: a solid privacy panel on a 16-foot slide leaf is a large sail hanging off two carriages. The practical constraint people underestimate is the back-run. A 14-foot opening needs about 14 feet of clear fence line beside it, and that run has to stay clear of garbage carts, snow piles, shrubs and the neighbor's parked trailer, which is a different question in Merriam Park than it is in Woodbury.
Automatic Sliding Gates
A slide operator drives the gate along its run through a chain, a rack or a belt, and the failure modes are worth knowing before you buy one. Ice in a V-track is the big one: the gate binds, the operator senses resistance and reverses, and the homeowner reads it as a broken opener. A gate that worked fine in October and quit in January did not break — it found the ice. Debris in the track does the same thing in autumn with wet leaves. Worn or seized rollers make the gate drag rather than roll, which shows up as an operator that sounds like it is working harder, because it is. On an automated slide gate the entrapment zones include the leading edge, the trailing edge and the gap between the moving leaf and the fence it passes, and UL 325 requires two independent protection devices at each of them.
Manual Sliding Gates
A manual slide gate is a legitimate choice when the gate is used a few times a week rather than a few times a day — a side yard, a boat or trailer access gate, a service opening on a commercial lot. It is simpler, cheaper, and there is no operator to service. The catch is that a slide gate is heavier to move by hand than a swing gate, because you are pushing the whole leaf along its run rather than swinging it about a pivot. Roller quality matters much more here: cheap wheels bind, and a gate that takes two hands and a shove will get left open. Latch design matters too, since a slide gate latches against a post at the end of its travel and needs a positive catch rather than a gravity latch. Where the gate will be used daily, plan the conduit for an operator even if you are not buying one yet.
Track Sliding Gate Systems

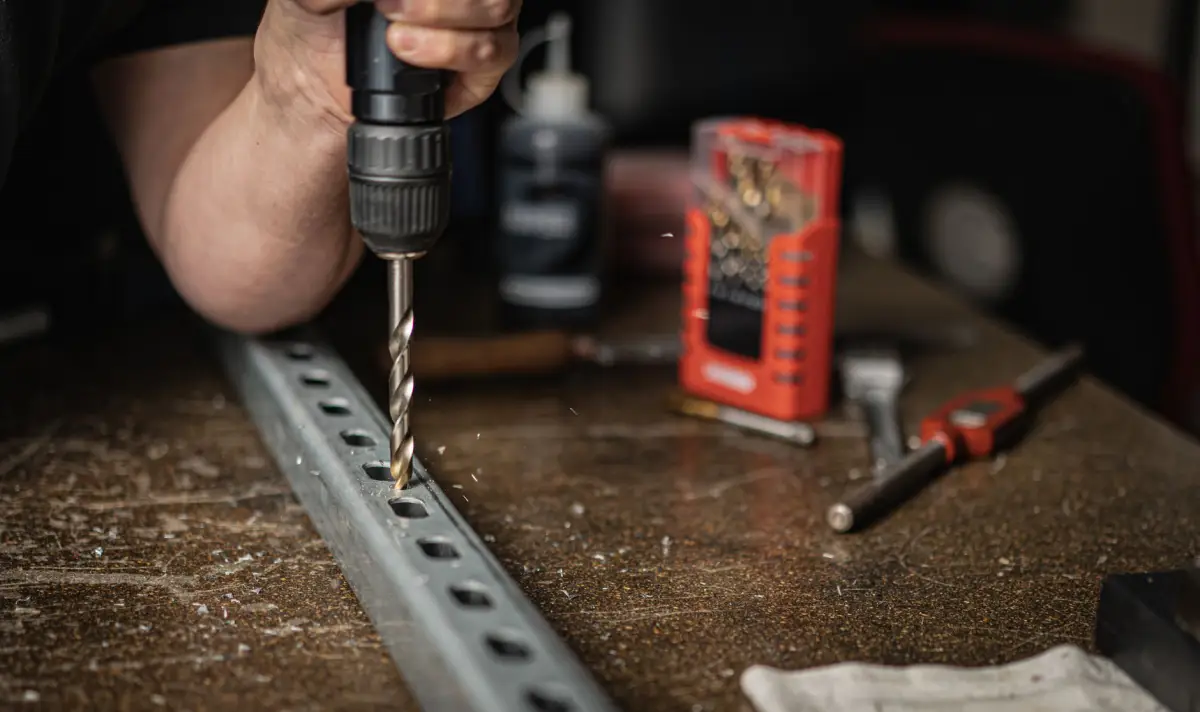

A V-track system sets a steel track into or onto the drive apron; the gate's wheels sit in the V and roll along it, with a guide roller assembly at the post keeping the leaf upright. It is the most economical way to hang a long gate and it has the fewest structural demands, because the ground carries the weight rather than the posts. Everything about it depends on the track staying clear. It packs with slush and refreezes, it collects gravel and leaves, and it needs the apron to drain away rather than into the track. Rollers wear, and a worn or seized roller lets the gate jump the track and bind — the classic 'gate came off track' service call. Maintenance is genuinely part of the specification here: keeping the track swept and clear in winter is the difference between a system that works and one that gets replaced with a cantilever gate in three years.
Sliding Gates for Limited-Space Properties
The narrow-lot case is where slide gates earn their price. Older St. Paul neighborhoods — Payne-Phalen, Dayton's Bluff, parts of Merriam Park — have alley approaches and side drives with a garage set close to the opening and no arc available in any direction. A cantilever gate is often the only workable answer, since it needs no ground track on a surface that may be broken asphalt and no swing arc that does not exist. What it does need is back-run, and it needs about 50 percent more than the opening width because of the counterbalance tail. Where even that is not available, the honest answer may be a bi-parting slide gate splitting the run in two directions, a vertical pivot gate, or the conclusion that this opening does not want a gate at all. That last one is worth hearing on the first visit rather than the third.
V-Track vs. Cantilever Slide Gates in a Metro Winter
V-track slide gate
Lower cost, simplest structure, ground carries the leaf weight. Needs back-run about equal to the opening. The track collects slush, freezes and stops the gate — the most common winter service call on this style.
Cantilever slide gate
No ground track, so nothing to freeze or fill with gravel. Roller carriages at the posts carry the leaf plus a counterbalance tail, which needs roughly 50 percent more back-run than the opening and heavier posts. Costs more up front and less over a decade on an exposed drive.
Signs You Need Sliding Gates
- There is no room to swing a gate — the drive is short, rises toward the house, or opens directly onto the sidewalk
- A garage door, retaining wall or parked vehicle sits inside the arc a swing gate would need
- There is clear fence line alongside the drive that stays clear through winter
- An existing slide gate has come off its track, drags, or needs a shove to get moving
- The V-track fills with ice each winter and the gate stops working every January
- Rollers are seized, noisy or visibly worn, and the operator is working harder than it used to
How Sliding Gates Works
- 1
Measure the run, not just the opening
The opening width matters, but the number that decides whether a slide gate is possible is the clear back-run alongside the drive. A V-track gate needs roughly the opening width; a cantilever gate needs about half again as much, because the counterbalance tail extends past the carriages. That run is measured on site and then walked in a second pass looking specifically for the obstructions that only exist part of the year — where the plow throws snow, where garbage carts live on collection day, where a shrub will be in three seasons. Grade along the run is checked as well, since a V-track has to sit level even where the drive does not, and a run that falls away means either a stepped track or a cantilever gate. Drainage across the apron is the last item: a track that sits in the low spot fills with meltwater and then with ice.
- 2
Choose the carrying system and size the leaf
V-track or cantilever is decided by exposure, available run and budget, in that order. Once that is settled, the leaf gets sized. A slide gate leaf is unsupported over most of its length, so it needs a heavier frame section than a swing leaf of the same width — commonly a 2x2 square tube perimeter with an internal truss or diagonal on longer gates. Infill drives wind load, and a solid panel on a long cantilever leaf transfers real force into the carriage posts during a gust. On a cantilever gate the counterbalance tail length, carriage spacing and post size are all calculated from finished leaf weight and length together; getting that arithmetic approximately right is what separates a gate that rolls with one finger from one that needs a shoulder.
- 3
Set posts and track to a string line
Slide gates are far less tolerant of post error than swing gates. A hinge post half an inch out of plumb on a swing gate is a nuisance; a carriage post half an inch out on a cantilever gate binds the leaf every cycle. Posts are set to a string line, plumbed, and braced while the concrete cures, with footings at the 42-inch Zone II minimum under Minnesota Rules 1303.1600 — and on a slide gate that depth matters more than usual, because frost movement translates directly into a leaf that no longer runs true. Where a V-track is used, the track is set level and bedded so it drains rather than ponds, and the apron around it is finished to shed water away. End stops and the receiving post are located last, once the gate has been run through its full travel and its actual resting position is known rather than assumed.
- 4
Fit rollers, operator and safeties, then run it through
Roller carriages or track wheels are fitted and adjusted so the leaf runs level and true with no rock at the free end. If an operator is going in, the chain, rack or belt is tensioned to specification — over-tensioned drive hardware wears carriages and under-tensioned hardware skips under load — and travel limits are set at both ends with soft start and soft stop tuned so the gate is not hitting its stops. Then the safeties: on a slide gate the entrapment zones include the leading edge, the trailing edge and the gap between the moving leaf and the fence, and ANSI/CAN/UL 325 requires two independent protection devices at each. Photo eyes and edge sensors are fitted and tested by obstructing the gate mid-travel. The last step is a winter briefing: keep the track clear, and call before forcing a gate that has stopped rather than after.
What Do Sliding Gates Cost in St. Paul, MN?
- V-track versus cantilever — the cantilever system costs more in hardware, posts and back-run
- Opening width and finished leaf weight, which drive frame section, carriage rating and post size
- Infill type: picket, horizontal slat or a solid privacy panel that has to be engineered for wind load
- Condition of the drive apron — whether a track can be bedded and drained, or the surface needs work first
- Manual or automated, and the operator class the leaf weight and cycle count call for
- Coating specification for a bottom rail that sits in plow spray from December to March
- Footings at every post to the 42-inch Zone II minimum, and whatever the ground does to that dig
- Safety hardware for three entrapment zones on an automated slide gate, plus entry devices
The gap between a V-track quote and a cantilever quote is real, and it is the one worth thinking about rather than negotiating. On a sheltered, well-drained apron a V-track gate will serve for years. On a north-facing drive that holds ice from December to March, the V-track gate will be a service call every winter and the difference will have been spent twice by year four. Where the gate sits matters more than what it costs on day one.
What to Look for in a St. Paul Slide Gate Installer
They measure the back-run before anything else
No back-run means no slide gate. An installer who confirms that on the first visit is saving you a conversation you would rather not have later.
Winter comes up unprompted
Where the plow pushes snow, how the apron drains and whether the track will hold ice should be raised by them, not by you.
Posts get set to a string line
Slide gates punish post error in a way swing gates do not. Ask how the posts are aligned and how the track is bedded.
Roller and carriage ratings are stated
Carriages are rated for a leaf weight. If nobody has calculated the finished weight, nobody has selected the carriage.
All three entrapment zones are addressed
A slide gate has a leading edge, a trailing edge and a gap along the fence. UL 325 covers all of them, not just the front.
Maintenance is explained, not assumed
A V-track gate is a system that needs its track kept clear. That should be said out loud at handover rather than discovered in January.
Residential & Commercial Sliding Gates
Residential
Slide gates for houses with short drives, alley approaches and no swing room across St. Paul, Highland Park, Merriam Park, Maplewood and Roseville — sized so the leaf clears its full run with snow on the ground.

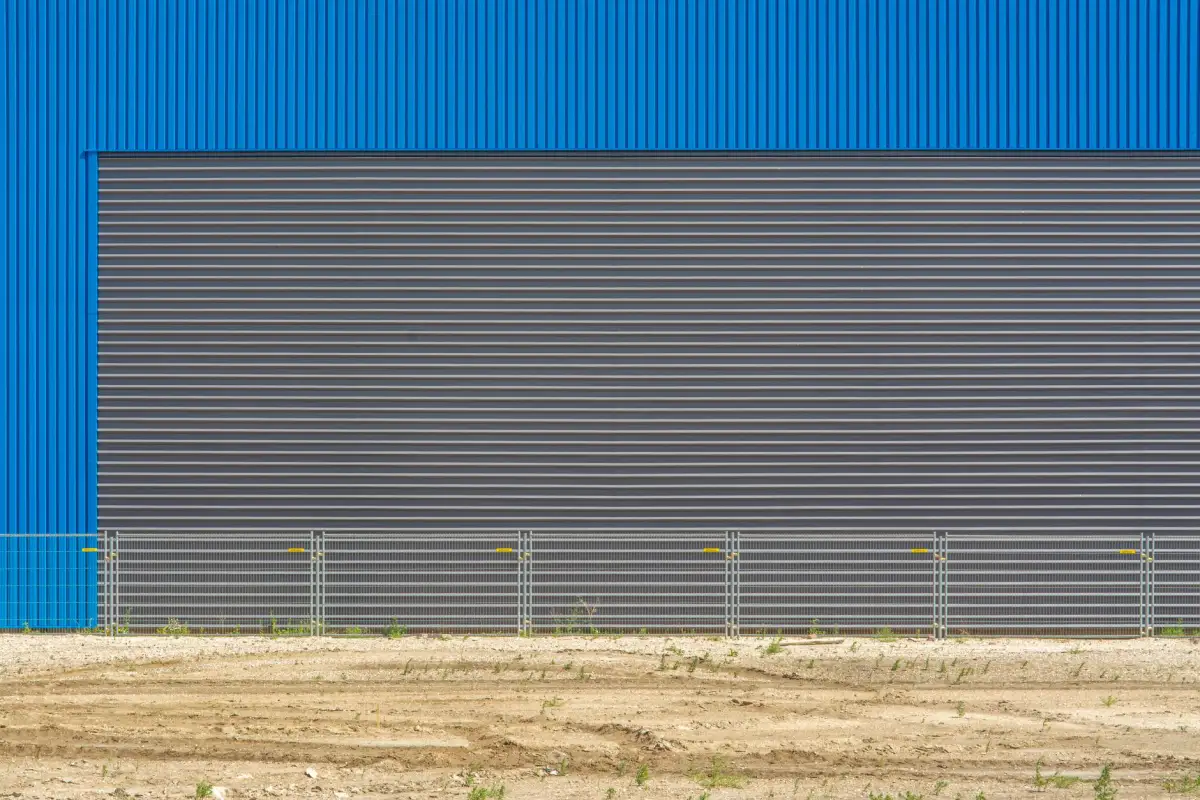

Commercial
Cantilever and V-track slide gates for yards, lots and service entrances. Commercial cycle counts push carriages, drive hardware and operator class well beyond residential ratings, and the maintenance interval shortens accordingly.
When Sliding Gates Isn’t the Right Call
- If there is no clear back-run alongside the drive, a slide gate will not work there no matter how it is engineered. A swing gate or a rethink of the layout is the answer.
- If the drive apron is badly broken or the run falls steeply away, a V-track gate will fight you. Either fix the apron or move to a cantilever gate.
- If nobody at the property will keep the track clear in winter, buy the cantilever gate. It costs more and it will not strand you in January.
- If the opening is under about eight feet, a single swing leaf is cheaper and simpler than anything on this page.
- If the property is outside Ramsey, Hennepin, Washington, Dakota or Anoka Counties, look for someone whose service trucks are already closer.
Frequently Asked Questions
- How much room does a sliding gate need beside the driveway?
- A V-track gate needs a clear run roughly equal to the opening width — a 14-foot gate needs about 14 feet of clear fence line to slide into. A cantilever gate needs about half again as much, because the counterbalance tail extends past the carriage posts. That run has to stay clear year round, including after the plow has pushed a berm along the fence.
- Why did my sliding gate come off its track?
- Almost always a worn, cracked or seized roller. When one wheel stops rolling the gate drags, lifts and jumps the V. Debris in the track does the same thing — gravel, wet leaves, packed slush. Frost movement in a shallow post footing can also shift the guide assembly out of alignment, which loads one roller far more than the other and wears it out early.
- Will a sliding gate work through a Minnesota winter?
- A cantilever gate will, because there is no ground track to fill. A V-track gate depends entirely on the track staying clear: packed slush freezes in the V and the gate simply will not roll, and if the operator keeps trying it will either reverse on current sensing or damage the drive hardware. On an exposed, north-facing or poorly drained apron, cantilever is the honest recommendation.
- My automatic sliding gate is stuck open. What is wrong?
- Common causes are an obstruction in the track, a photo eye blocked or knocked out of alignment, a travel limit that has drifted so the operator no longer knows where closed is, or a failed roller making the gate too hard to move. In winter, ice in the track is the first thing to check. Do not force it by hand while the operator is engaged — use the manual release first.
- Are sliding gates more expensive than swing gates?
- Generally, yes. A slide gate leaf is unsupported for most of its travel so it needs a heavier frame, the carriage or track hardware costs more than hinges, and a cantilever gate adds a counterbalance tail and heavier posts. The reason to pay it is that swing gates need an arc, and plenty of St. Paul driveways do not have one.
- Can a sliding gate be automated later?
- Yes, and it is straightforward if the gate rolls freely and the posts are sound. The planning item is the same as with any automated gate: power. Running conduit to the operator position while the ground is open costs very little, and trenching it under a finished apron costs a great deal. Sleeve for it during the original install even if the operator is years away.
Learn More
- DASMA — An Installer's Guide to ASTM F2200 — the construction standard covering slide gate roller retention, gaps and guarding on automated vehicular gates
- DASMA — ANSI/CAN/UL 325 and Gate Installations — how entrapment zones are identified on slide gates, including the trailing edge and the gap along the fence
- Minnesota Pollution Control Agency — Chloride — the road-salt tonnage behind the corrosion and coating decisions on any gate near a plowed surface
