Industrial & Heavy-Duty Gate Systems in St. Paul, MN — Warehouse, Yard & Facility Access
Industrial gates are equipment. They get specified by cycle count and vehicle load, maintained on a schedule, and stocked with spares for the day one stops.
Industrial & Heavy-Duty Gates in St. Paul, MN
St. Paul Elite Metal Gates is your local resource for industrial gates, heavy-duty gate systems, high-cycle operators and commercial gate maintenance throughout St. Paul and Ramsey, Hennepin, Washington, Dakota and Anoka Counties. We work with experienced fabricators and installers who build to industrial duty rather than scaling up a commercial gate.
Industrial gates sit at the top of the duty scale, and everything about them follows from that. Openings are wide enough for tractor-trailers and equipment. Cycle counts run into the hundreds per day. Leaves are heavy enough that the posts are structural elements rather than fence posts, and the operator is a piece of production equipment with a maintenance schedule and, on a critical opening, a spare on the shelf.
The design constraint people underestimate is not strength — it is throughput and downtime. A gate that cycles slowly enough to queue trucks at shift change costs money every morning, and a gate that fails costs more in a single day than the difference between the right specification and the wrong one. UL 325 Class III covers industrial and limited access, Class IV restricted access with supervised operation, and picking correctly between them is where an industrial gate project actually begins.
What’s Included in a St. Paul Industrial & Heavy-Duty Gates Quote
- Traffic study: vehicle types and sizes, daily and peak-hour cycle counts, shift patterns and queuing behaviour
- Structural design of the leaf, posts and footings against weight, wind load and any impact requirement
- Cantilever, V-track or bi-parting configuration selected against available back-run and winter conditions
- Operator specification at UL 325 Class III or IV, with hydraulic or heavy-duty drive as duty requires
- Electrical supply design including three-phase where required, voltage drop, surge protection and backup
- Vehicle detection and credentialing sized for the traffic — loops, long-range readers or plate recognition
- Safety systems across every entrapment zone with the full traffic mix of trucks, forklifts and pedestrians accounted for
- Maintenance schedule, wear-item list and a stocked-spares recommendation for critical openings
Industrial & Heavy-Duty Gate Systems in St. Paul, MN
Industrial Sliding Gates
Industrial slide gates are wide, heavy and cycle constantly, and the configuration choice is largely made by the ground. Cantilever gates carry the leaf on heavy roller carriages with a counterbalance tail and touch nothing at ground level, which in this metro is decisive — an industrial yard where trucks track slush, gravel and de-icer across the opening all winter will pack a V-track solid, and a gate that will not roll at 5am in January is a shift's worth of trucks on the street. Cantilever systems need roughly 50 percent more clear back-run than the opening, and on very wide openings that becomes the constraint, which is when bi-parting configurations enter the conversation — two leaves meeting in the middle, halving the required run in each direction. V-track remains appropriate on very heavy leaves with a well-drained, maintained apron, and that maintenance obligation should be stated rather than assumed.
Heavy-Duty Steel Security Gates
Heavy-duty means the gate resists something beyond its own weight — vehicle impact, forced entry, or the accumulated abuse of a working yard where equipment operates close to it. Structurally that means closed tube sections with welded and gusseted corners, internal trussing on long leaves rather than a single diagonal, and posts designed closer to bollards with footing mass and reinforcement to match. Infill becomes a structural choice, since a solid or louvered panel transfers substantial wind load into the posts on every gust. Protection of the gate itself is part of the design at this scale: bollards ahead of the posts, wheel guides on the approach and impact-tolerant carriage mounts all cost less than the repeated repairs they prevent, because in an industrial yard the gate will be hit — the design question is only how expensively.

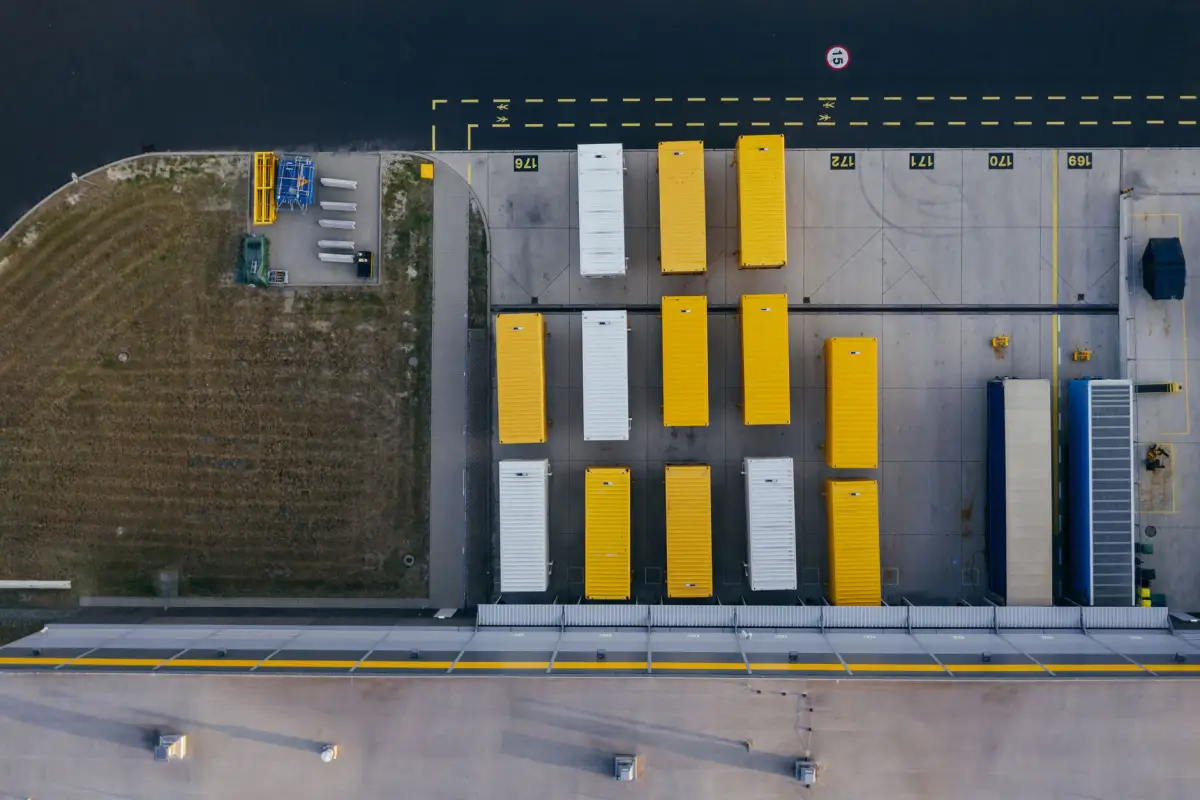

Warehouse & Distribution Center Gates
Distribution sites have a specific traffic profile: heavy, concentrated and time-sensitive. The peak matters far more than the average, because a gate that handles three hundred cycles across a day but eighty of them between four and six in the morning has a duty profile the daily figure conceals entirely. Design decisions follow from queuing rather than from security: how far back from the street the gate sits so a tractor-trailer waits on the property, where the detection loops are placed so the gate is already opening as the truck approaches, how long the auto-close timer runs so a trailer clears without leaving a tailgating gap, and whether a second lane or a dedicated exit is cheaper than a faster gate. Separating pedestrian and light-vehicle traffic onto their own gate removes cycles from the main opening and is often the highest-value change available.
High-Cycle Automatic Gate Systems
At industrial cycle counts the operator is production equipment and gets treated accordingly. Continuous-duty motors, hydraulic or heavy-duty rack drives, and gearboxes engineered for thousands of cycles are the baseline rather than an upgrade. Thermal management is a design consideration, since a unit running near its duty limit will cut out during the peak it was bought for. Soft start and soft stop tuning has a larger effect here than anywhere else, because a heavy leaf slamming its stops several hundred times a day destroys carriages, drive components and its own mounting at a rate that is easy to calculate and easy to avoid. On a critical opening, a stocked spare operator or drive assembly is standard practice, because the cost of holding one is trivially small against the cost of a day with the gate down and no parts available.
Industrial Vehicle Access Gates
Access management at industrial scale is about moving authorised vehicles through without stopping them and keeping a record of what went where. Long-range readers pick up a windshield tag as a truck approaches so the gate is already opening. Plate recognition suits sites with visiting carriers who cannot all hold credentials. Entry and exit loops handle detection, and a safety loop under the gate path is essential rather than optional where trailers and forklifts operate. Where security requires it, a vehicle trap between two gates prevents tailgating definitively. Two local practicalities: detection loops are cut into pavement and so get coordinated with any resurfacing rather than replaced afterwards, and loop detectors need re-tuning after a hard freeze-thaw season has moved the slab, which in this metro is most years.
Signs You Need Industrial & Heavy-Duty Gates
- Trucks are queuing at the entrance during shift change or the morning delivery window
- The gate has failed during operating hours more than once and there was no spare on site
- The operator cuts out during the peak and works normally afterwards
- A V-track gate ices up every winter and the yard cannot keep the track clear
- The gate has been struck by a truck or a forklift and no longer runs true
- Pedestrians and light vehicles are using the main vehicle gate, adding cycles it was not sized for
- There is no record of what enters and leaves the yard, and material has gone missing
How Industrial & Heavy-Duty Gates Works
- 1
Study the traffic and the peak
Industrial specification starts with a traffic study rather than a measurement. Vehicle types and sizes determine opening width, approach geometry and the setback needed so the largest truck waits on the property rather than in a traffic lane. Daily and peak-hour cycle counts determine the operator class and the hardware ratings, and the peak is the number that governs — an operator sized on a daily average will thermal-cut out during the shift change it was bought to handle. Shift patterns and queuing behaviour are observed rather than described, because how traffic actually arrives at 5am is frequently not how the site believes it does. The study also identifies what a failure costs per hour, which is the number that justifies backup power, stocked spares and a redundant lane where one is warranted.
- 2
Engineer the structure for weight, wind and impact
At industrial scale the gate is a structure. Leaf weight and length set the frame section, the internal trussing and the carriage rating. Infill is assessed for wind load, since a solid or louvered panel on a 30-foot cantilever leaf transfers serious force into the carriage posts in a gust, and that force sizes the posts and the footings before frost depth does. Footings start from the 42-inch Zone II minimum under Minnesota Rules 1303.1600 and are then designed upward for load. Where vehicle impact is credible — and in a working yard it is — posts are designed closer to bollards and protection is designed in: bollards ahead of the carriage posts, wheel guides on the approach, and mounting that tolerates a knock without destroying the alignment.
- 3
Specify the drive, the supply and the detection
Operator class comes from the traffic study: UL 325 Class III for industrial and limited access, Class IV where access is restricted and operation supervised. Drive type follows the leaf and the duty — hydraulic for the heaviest and highest-cycle openings, heavy-duty rack-and-pinion where serviceability matters more, and continuous-duty motors throughout. Electrical supply is designed rather than assumed: three phase where the operator requires it, conductor sizing against voltage drop over what is often a long yard run, surge protection, and backup provision matched to what an hour of downtime costs. Detection is designed alongside — entry, exit and safety loops placed so the gate is opening as a truck arrives and cannot close on a stopped trailer, plus long-range credential reading where stopping the vehicle is itself the bottleneck.
- 4
Commission, protect people, and stock the spares
Alignment is verified with an instrument, drive tension is set to specification, travel limits are set with the gate at rest, and soft start and soft stop are tuned so a heavy leaf decelerates into its stops rather than hitting them several hundred times a day. Safety commissioning is the most involved part at this scale: ANSI/CAN/UL 325 requires two independent entrapment-protection devices at each entrapment zone, and an industrial gate has more zones and a more complex traffic mix — trucks, forklifts, pedestrians — so guarding, marking and a separate pedestrian route all get designed rather than assumed. Then the maintenance interval is written against cycle count with a named wear-item list, and the stocked-spares list is agreed for anything whose failure would stop the opening.
What Do Industrial Gates Cost in St. Paul, MN?
- Opening width, vehicle type and the setback required so the largest truck waits on the property
- Peak-hour cycle rate, which drives operator class, drive type and hardware ratings
- Configuration — cantilever, V-track or bi-parting — and the back-run each requires
- Structural design for leaf weight, wind load on the infill and any vehicle impact requirement
- Electrical supply: three-phase provision, conductor sizing over long yard runs, surge protection and backup power
- Detection and credentialing scope, including pavement cutting for loops and any long-range or plate reading
- Gate protection: bollards, wheel guides and impact-tolerant mounting in a working yard
- Stocked spares and the maintenance interval agreed for a critical opening
On an industrial opening the useful comparison is cost per hour of downtime avoided, not the quoted total. A site where an hour with the gate down costs more than the difference between two operator classes should not be buying the lower class, and should be holding a spare drive assembly. Establishing that hourly figure early makes most of the remaining specification decisions straightforward.
What to Look for in a St. Paul Industrial Gate Contractor
They ask what an hour of downtime costs
That figure justifies or rules out backup power, spares and redundancy. A contractor who never asks it is specifying blind.
The peak rate drives the design
Daily averages hide shift changes. An operator sized on the average will fail during exactly the window it was bought for.
Gate protection is designed in
In a working yard the gate will be hit. Bollards and wheel guides cost less than the repairs and downtime they prevent.
Pedestrian routes are separated
People should not walk through an industrial vehicle gate. A separate walk gate is a safety improvement and removes cycles from the main opening.
Spares are recommended by name
A wear-item list with expected lives at your duty, and a short list of parts to hold, is what turns downtime into scheduled work.
Throughput gets tuned after commissioning
Loop placement and auto-close timing decide whether trucks queue. That is a return visit worth building into the contract.
When Industrial & Heavy-Duty Gates Isn’t the Right Call
- If the site's traffic is moderate rather than industrial, this specification is more gate than the opening needs and the commercial pages are the right starting point.
- If the real constraint is throughput beyond what a safe cycle allows, the answer is a second lane or a barrier arm, not a faster industrial gate.
- If the opening affects a fire lane or a required access route, the fire code governs and that conversation starts with the city.
- If the site will not carry a maintenance interval or hold spares on a critical opening, expect unplanned downtime and budget for it honestly.
- If the facility is outside Ramsey, Hennepin, Washington, Dakota or Anoka Counties, find a contractor closer to it — response time is most of what you are buying.
Frequently Asked Questions
- What makes a gate 'industrial' rather than commercial?
- Duty and load. Industrial openings pass tractor-trailers and equipment, cycle into the hundreds per day, and carry leaves heavy enough that the posts are structural elements. UL 325 Class III covers industrial and limited access and Class IV restricted access with supervised operation, and the hardware — continuous-duty motors, hydraulic or heavy rack drives, cycle-rated carriages — follows from that rather than from the gate's dimensions.
- Should an industrial slide gate be cantilever or V-track?
- Cantilever, in most east-metro industrial applications. A yard where trucks track slush, gravel and de-icer across the opening will pack a ground track solid, and a gate that will not roll at 5am in January is a shift's worth of trucks on the street. V-track remains valid on very heavy leaves with a well-drained, actively maintained apron — but that maintenance obligation should be stated up front rather than discovered.
- How do we stop trucks queuing at the gate?
- Usually through detection placement and setback rather than gate speed. Loops positioned so the gate begins opening as a truck approaches, enough setback that the largest vehicle waits on the property, long-range credential reading so nobody stops to present anything, and auto-close timing tuned to the longest trailer. Where the volume genuinely exceeds one lane, a second lane costs less than the queue.
- Do we need a spare operator on the shelf?
- On a critical opening, yes. The calculation is simple: compare the cost of holding a spare drive assembly or operator against the cost of an hour with the gate down, multiplied by the realistic lead time for a replacement. On most industrial sites that arithmetic settles quickly. It also argues for standardising hardware across multiple gates so one spare covers several openings.
- How is an industrial gate protected from being hit?
- By assuming it will be. Bollards ahead of the carriage posts, wheel guides on the approach to keep trailers off the track and the leaf, and mounting arrangements that tolerate a knock without destroying alignment. In a working yard the gate gets struck sooner or later, and designing for that costs a fraction of repeatedly repairing a gate that was designed as though it would not.
- How often does an industrial gate need maintenance?
- On cycles, and at industrial rates that usually means quarterly at minimum on a main opening — carriages, track, drive tension, arm and ram condition, force and limit settings, loop tuning and a physical obstruction test of every safety device. A pre-winter pass on force settings, track clearance and drainage and a spring pass after the freeze-thaw season are fixed regardless of the cycle-based interval.
Learn More
- DASMA — Vehicular Gate Operators and the ANSI/CAN/UL 325 Standard — the Class III and Class IV definitions that apply to industrial and restricted-access gate operators
- DASMA — An Installer's Guide to ASTM F2200 — the construction standard governing roller retention, gaps and guarding on heavy automated vehicular gates
- Minnesota Rules 1303.1600 — Footing Depth for Frost Protection — the 42-inch Zone II baseline that industrial footings start from before load and impact design is added
