Security Gates in St. Paul, MN — Residential & Commercial Perimeter Security
A security gate is a delay, not a wall. What it is worth depends on picket spacing, latch shrouding, hinge pins and whether the fence beside it is any good.
Security Gates in St. Paul, MN
St. Paul Elite Metal Gates is your local resource for security gates, driveway gates, automated entry systems and ornamental iron fencing throughout St. Paul and Ramsey, Hennepin, Washington, Dakota and Anoka Counties. We work with trusted ornamental iron specialists who build gates that resist the ways gates actually get defeated.
The honest framing for a security gate is delay, not prevention. Nothing stops a determined person with time and tools. What a well-built gate does is make the property a slower, louder, more visible target than the one next door, and it removes the casual entries entirely — the walk-in, the reach-through, the drive-in turnaround.
That means the details matter more than the appearance. Picket spacing narrow enough that nobody reaches the latch. A top profile that is unpleasant to grip rather than a convenient rail. A latch shrouded or set behind solid panel. Hinges with non-removable pins or welded stops so the leaf cannot be lifted off. And a gate that is no stronger than the fence beside it is a gate people simply walk around, which is the most common reason a security gate does nothing.
What’s Included in a St. Paul Security Gates Quote
- Assessment of the whole perimeter, not just the opening — a strong gate in a weak fence line is decoration
- Picket spacing and infill specified to prevent reach-through to the latch and to discourage footholds
- Top profile chosen for climb resistance where that is a real concern, within the city's 6-foot-6-inch residential height limit
- Latch shrouding or interior-only operation, with lockable hardware as the fence code requires
- Non-removable hinge pins or welded hinge stops so the leaf cannot be lifted off its hinges
- Hinge and latch post sizing plus footings below the 42-inch Zone II frost depth
- Automation and entry hardware where required, including UL 325 entrapment protection
- Coordination with lighting and camera positions so the gate is covered rather than shadowed
Security Gate Installation in St. Paul, MN
Residential Security Gates
On a house, the security gate's job is usually to close the one gap in an otherwise continuous boundary — the driveway, the side yard, the alley approach. It has to do that without turning the property into a compound, which in St. Paul is also a code constraint: residential fence height is capped at 6 feet 6 inches above grade, so height is not available as a security strategy and the detailing has to carry the weight instead. That means tight picket spacing rather than tall pickets, a top profile that offers no comfortable handhold, and a latch that cannot be reached from outside. It also means being honest about what the rest of the boundary does. A gate with a four-foot hedge beside it is a gesture. The gate and the fence line are one system, and upgrading only the gate is the most common way people spend money on security without buying any.

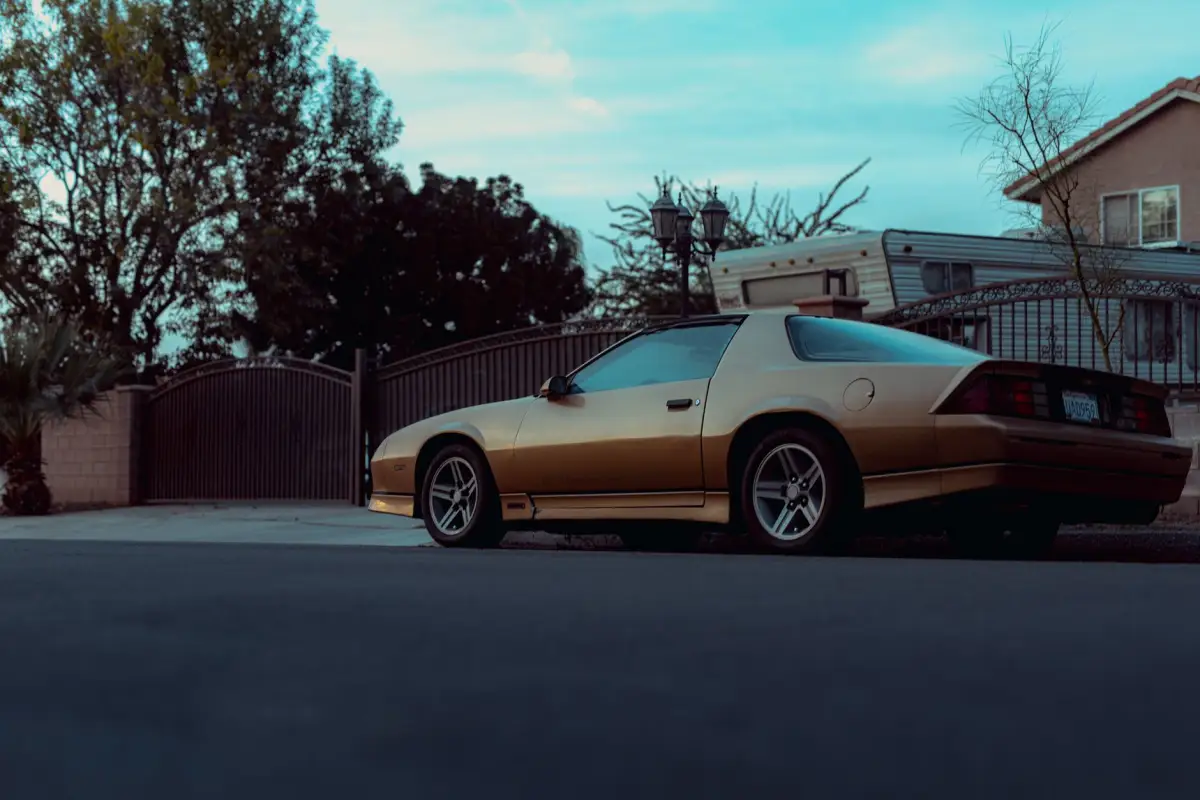

Driveway Security Gates
A driveway security gate stops vehicles, which is a different problem from stopping people. Vehicle stopping means the leaf, the posts and the footings have to resist a push rather than merely a climb, and that pushes post size and footing diameter up well beyond what an ornamental gate of the same width would use. The latch or drop rod becomes the weak point — a gate held only by a gravity latch will open under steady pressure — so a positive lock, a heavy drop rod into a sleeved socket, or an operator with a self-locking gearbox does the actual work. Where the gate closes across a public sidewalk, sight lines matter: a solid privacy panel that blocks a driver's view of pedestrians trades one risk for another. Picket infill that stops a person but not a sightline is usually the better compromise.
Automated Security Gates
Automation improves a security gate mostly because it removes the reason people leave gates open. A gate that has to be pushed in a February wind gets propped, and a propped gate is not a security gate. An operator with an exit loop and a keypad means the gate closes behind every vehicle without anyone deciding to close it. The security-relevant settings are the ones people rarely ask about: auto-close timing short enough that a second vehicle cannot tailgate through, a self-locking drive so the leaf cannot simply be pushed open when it is closed, and battery backup so a power cut does not leave the gate standing open. Against all of that sit the UL 325 requirements — two independent entrapment-protection devices per zone — which are not negotiable and which occasionally conflict with an owner's instinct to close the gate faster. Safety wins that argument.

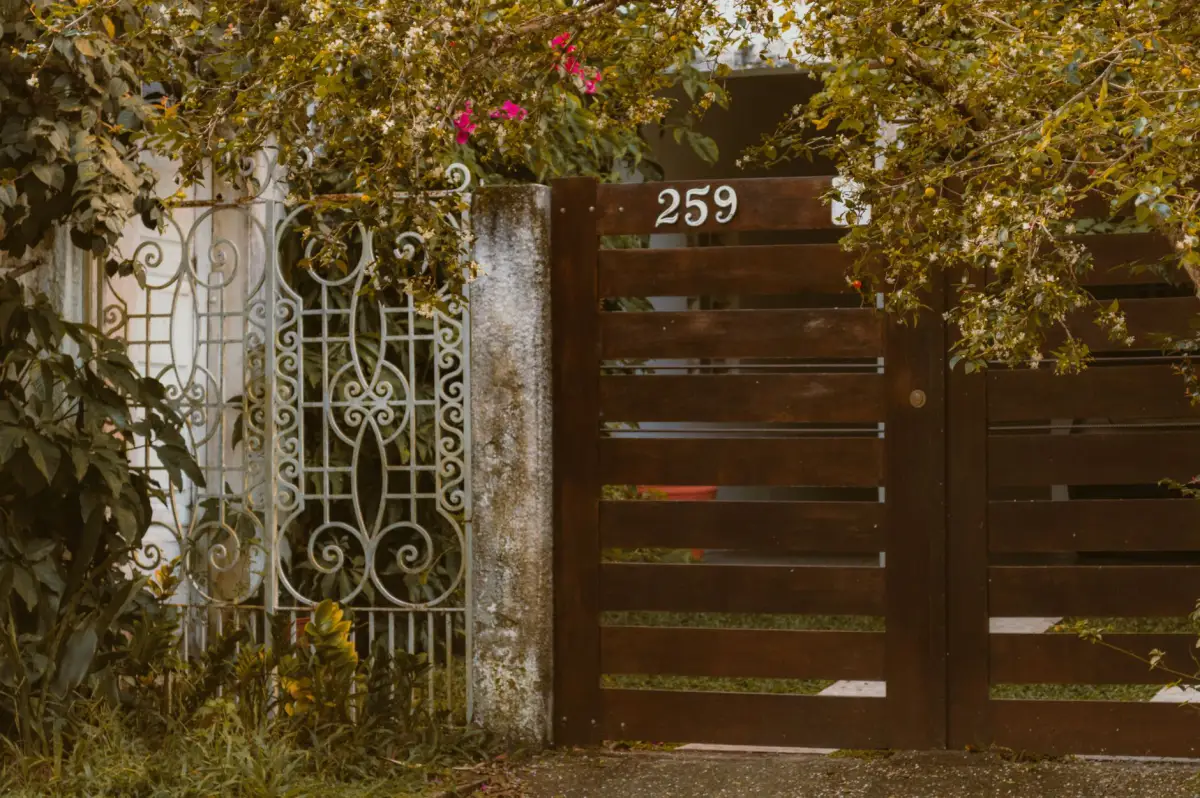

Pedestrian Security Gates
The walk gate is where most perimeters actually get defeated, because it is the smallest, cheapest and most-used gate on the property and it usually has the least thought in it. A security walk gate closes the specific weaknesses: picket spacing tight enough that an arm cannot reach the latch, a latch behind a shroud or operated only from the inside, hinge pins that cannot be driven out, and a frame in closed section rather than open channel that can be pried. Where the gate is part of a controlled entry — an apartment courtyard, a business rear door, a shared side yard — it moves to an electric strike or a maglock, and at that point the release becomes a life-safety item: the hardware has to let people out under power loss, and that has to be tested rather than assumed.
Security Gate Entry Systems
How people get through a security gate is where security and convenience have their fight. Keys get copied and lost. Codes get shared and never changed. Fobs get handed to a dog walker and never returned. The practical answer for most properties is a system where credentials can be revoked individually rather than by re-keying everything — a keypad with per-user codes, fobs that can be deleted from a controller, or smartphone access with a log. Video intercom adds the ability to see who is asking before the gate moves, and cellular-connected callboxes work even when nobody is home. This page covers the gate; the entry systems themselves — keypads, card and fob readers, telephone and video intercom, smartphone access and vehicle detection — are covered in depth on the gate access control page.
Signs You Need Security Gates
- The driveway is the one gap in an otherwise continuous fence line
- Vehicles use the drive to turn around, or people cut across the property because nothing stops them
- The existing gate can be reached through, lifted off its hinges, or opened by pushing steadily on it
- The gate gets left open because operating it manually is inconvenient
- There has been an incident on the property or nearby and the boundary has an obvious weak point
- An insurer, a lease or a home business requires controlled access to the site
How Security Gates Works
- 1
Walk the whole perimeter first
A security gate is only worth what the weakest point in the boundary is worth, so the first visit walks the line rather than the opening. Where does the fence drop to four feet? Where is there a woodpile, a garbage enclosure or an air conditioner that functions as a step? Which side yard has no gate at all? Which neighbouring property offers an easy route in? This is also where expectations get set honestly, because the answer is often that the gate is not the highest-value thing to spend on. Lighting, sightlines and a camera position frequently do more per dollar than a heavier gate, and a gate that funnels people to a lit, overlooked point is doing security work that a taller gate on its own does not. The output of this step is a priority order, not just a gate specification.
- 2
Specify the gate against how gates get defeated
Gates fail in a small number of predictable ways, and each has a specific counter. Reach-through to the latch is answered by picket spacing and by moving the latch inboard or behind a shroud. Climbing is answered by the top profile and by removing horizontal rails that function as a ladder — a mid-rail on the outside face is a step. Lifting the leaf off its hinges is answered by non-removable pins or a welded stop on the top hinge. Prying is answered by closed frame sections rather than open channel. Simple pushing is answered by a positive lock or drop rod rather than a gravity latch. St. Paul's 6-foot-6-inch residential height cap means none of this can be solved by going taller, which is a useful constraint: it forces the specification onto the details that actually matter.
- 3
Set posts and footings to resist force, not just frost
A security gate's posts do two jobs. The first is the same as any gate — resist frost movement, which under Minnesota Rules 1303.1600 means footings at the 42-inch Zone II minimum for Ramsey, Hennepin, Washington, Dakota and Anoka Counties. The second is resisting a lateral push, which is a different calculation and generally means a larger post section and a wider concrete collar than an ornamental gate of the same size would need. On a driveway security gate that also has to stop a vehicle, the posts effectively become bollards and get sized accordingly. Posts are set plumb and braced while the concrete cures, and the receiving side gets as much attention as the hinge side, because a latch post that can be pushed out of the way makes a strong leaf irrelevant.
- 4
Automate, lock, and light the approach
Where the gate is automated, the operator is chosen partly for its holding behaviour: a self-locking gearbox resists a gate being pushed open in a way a free-wheeling drive does not, and auto-close timing gets set short enough to prevent a second vehicle following through. Battery backup is specified so a power cut does not leave the gate standing open — the failure mode of a security gate should not be 'open'. Then the UL 325 devices go in, two independent entrapment-protection devices per zone, tested by obstructing the gate rather than by checking a box, because the safety requirement does not bend for the security requirement. The last item is the approach: a gate covered by a light and a camera is worth substantially more than the same gate in shadow, and getting those positions agreed while the conduit is open costs nothing.
What Do Security Gates Cost in St. Paul, MN?
- Opening width, configuration and whether the gate also has to resist vehicle force rather than only foot traffic
- Infill density and top profile — tighter picket spacing and climb-resistant tops are more material and more fabrication
- Frame section: closed tube for pry resistance costs more than open channel
- Hardware: shrouded latches, positive locks, non-removable hinge pins and heavy drop rods with sleeved sockets
- Post size and footing diameter, which go up when the posts have to resist lateral force as well as frost
- Automation, self-locking drive, auto-close configuration and battery backup
- Entry hardware and whether credentials need to be individually revocable
- Coordination with lighting and camera positions, and any conduit that implies
The most expensive security gate on a weak perimeter is worth less than a modest gate on a good one. Before pricing the gate, price the walk-around: if someone can step over a four-foot section of fence forty feet away, that section is the project and the gate is the second phase. Any quote that does not raise this is quoting the gate rather than the problem.
What to Look for in a St. Paul Security Gate Company
They walk the perimeter before the opening
A gate specified without looking at the rest of the boundary is a gate specified in isolation from the thing it is supposed to protect.
Hinge pins and latch shrouding get mentioned
Lifting the leaf and reaching the latch are the two easiest defeats. If neither comes up in the conversation, neither has been designed for.
Height is not offered as the answer
St. Paul caps residential fences at 6 feet 6 inches. Anyone selling security through height either does not know that or is planning to ignore it.
The failure mode is 'closed', not 'open'
Battery backup and a self-locking drive decide what the gate does during a power cut. That should be a stated design choice.
Safety devices are not traded against security
UL 325 entrapment protection is required regardless of how much anyone wants the gate to close faster. A company that treats that as optional is a problem.
They will say when lighting beats hardware
Sometimes a light and a camera at the gate do more than a heavier gate. Hearing that from someone selling gates is a good sign.
Residential & Commercial Security Gates
Residential
Driveway and walk security gates for homes across St. Paul, Highland Park, Como Park, Mendota Heights, Woodbury and Shoreview — designed around the specific weak point in a boundary rather than sold as a general upgrade.
Commercial
Perimeter, yard and entrance security gates for businesses and property managers. Commercial sites usually need controlled access with revocable credentials, higher cycle ratings and an entry log, which moves the specification well past a residential gate.
When Security Gates Isn’t the Right Call
- If the fence beside the gate can be stepped over, fix that first. A strong gate next to a weak boundary buys nothing.
- If what you actually need is to stop vehicles turning around in the drive, a bollard or a chain may do the job for a fraction of the cost.
- If you want a gate taller than 6 feet 6 inches on a residential lot in St. Paul, that is not something we can build for you — the city caps it.
- If the priority is knowing who is at the gate rather than stopping them, an intercom and camera are the better first purchase, not a heavier leaf.
- If the property is outside Ramsey, Hennepin, Washington, Dakota or Anoka Counties, look for someone closer to it.
Frequently Asked Questions
- How tall can a security gate be in St. Paul?
- Residential fences and the gates in them are capped at 6 feet 6 inches above the sidewalk or finished grade. Anything over seven feet also triggers a required inspection. That means height is not a security strategy here, and the specification has to be carried by picket spacing, top profile, latch shrouding and hinge detailing instead.
- What actually makes a gate secure rather than just solid?
- Four details. Picket spacing tight enough that nobody reaches the latch. A top profile with no comfortable handhold and no outside-face mid-rail acting as a step. Hinge pins that cannot be driven out, or a welded stop on the top hinge so the leaf cannot be lifted off. And a positive lock or drop rod rather than a gravity latch, so the gate does not open under steady pressure.
- Should a security gate be solid or see-through?
- Usually see-through. A solid panel hides whoever is behind it, blocks a driver's view of the sidewalk, and acts as a sail that drives up post and operator sizing. Picket infill at tight spacing stops a person while keeping the approach visible and overlooked, which is worth more than privacy on most security-driven installations.
- What happens to an automated security gate in a power cut?
- It depends on what was specified, which is why it is worth asking before the install rather than after. With battery backup the gate keeps cycling and stays closed between uses. Without it, the gate sits wherever it stopped, and every operator has a manual release that will let someone open it by hand. For a security gate, the intended failure state should be closed, and that means backup power.
- Will a security gate stop a vehicle?
- Only if it was designed to. Stopping a vehicle is a structural problem — post size, footing diameter and the strength of the latch or lock, not the appearance of the leaf. An ornamental gate that looks substantial will bend and swing open under a determined push. Where vehicle resistance is the requirement, the posts effectively become bollards and get sized as such.
- Do I need cameras as well as a gate?
- Not necessarily, but the two are worth planning together. A gate covered by a light and a camera is a materially harder target than the same gate in shadow, and it also gives you a record of who came and went. The cheapest time to run that conduit is while the gate's power conduit is already open, which is a reason to decide early even if the camera comes later.
Learn More
- Saint Paul DSI — Fence Plan Review, Permit and Inspections — the city's residential height cap, permit fees, inspection triggers and property-line requirements for fences and gates
- DASMA — Vehicular Gate Operators and the ANSI/CAN/UL 325 Standard — operator classes and the entrapment-protection requirements that apply to an automated security gate
- Minnesota Rules 1303.1600 — Footing Depth for Frost Protection — the 42-inch Zone II minimum that a security gate post has to meet before any consideration of lateral force
